Mac's Vertical Home Lift PL-50
Mac's Vertical Home Lift PL-50
The Mac’s Vertical Home Lift PL-50 is designed and engineered for everyday home use. It is easy to operate, easy to install and virtually maintenance free. Every safety detail has been carefully designed in the Mac’s Vertical Home Lift including a non-slip platform, constant pressure switches, a low platform for easy access, safety ramp and railing with all rolled edges.
The Mac's Vertical Home Lift PL-50 is built to meet and exceed residential applications.

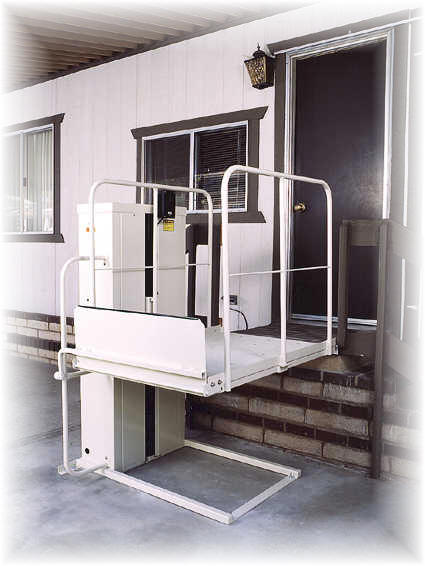

Mac's Vertical Home Lift PL-50
The drive system uses common household current and operates in all weather conditions, from -30 degrees to +120 degrees. The key-operated, constant pressure switch enables you to start, stop and change directions at any point, unlike many of the other lifts out there. The electrical system is placed well above ground and sealed against moisture. The lift is finished with an automotive grade powder coat to further protect the lift against the elements.

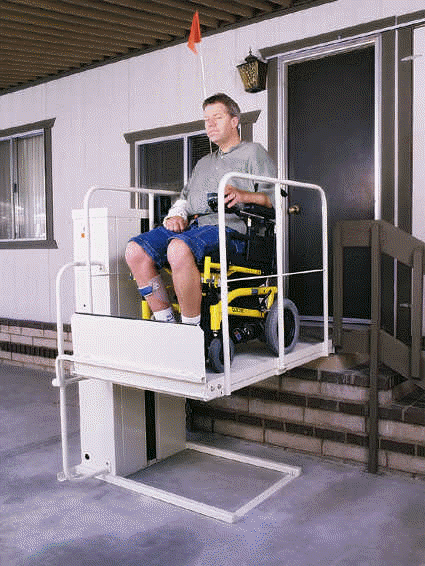

The Mac’s Vertical Home Lift PL-50 is sturdy enough to lift and lower up to 750 lbs and will accommodate most electric wheelchairs and scooters. In fact we ran a PL-50 with a full 750 lb load,continuously on a cycle that lifted and lowered the platform 1 time a minute, 60 times an hour, 1,440 times a day with no rest. That lift ran for 3 months, outside on our roof and completed over 129,600 cycles without fail or need for maintenance. So if you were to use this lift 1 time a day your lift would run for over 355 years without a single lost day!

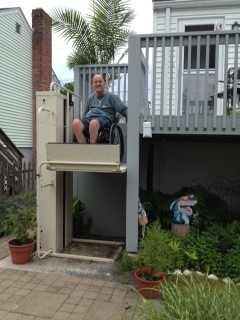

Mac's Vertical Home Lift PL-72
Agoura Hills | Alhambra | Arcadia | Artesia | Avalon | AZ.usa | Baldwin Park | Bell | Bell Gardens | Bellflower | Beverly Hills | Bradbury | Burbank | Calabasas | | Carson | Cerritos | Chatsworth Claremont | Commerce | Compton | Covina | Cudahy | Culver City | Diamond Bar | Downey | Duarte | El Monte | El Segundo | Encino Gardena | Glendale | Glendora | Granada Hills Hawaiian Gardens | Hawthorne | Hermosa Beach | Hidden Hills | Huntington Park | Industry | Inglewood | Irwindale | La Caandntilde;ada Flintridge | La Habra Heights | La Mirada | La Puente | La Verne | Lancaster | Lakewood | Lawndale | Lomita | Long Beach | Los Angeles | Lynwood | Malibu | Manhattan Beach | Maywood | Mission Hills Monrovia | Montebello | Monterey Park | North Hollywood Northridge Norwalk | Pacoima Palmdale | Palos Verdes | Paramount | Pasadena | Pico Rivera | Pomona | Redondo Beach | Reseda Rolling Hills | Rosemead | San Dimas | San Fernando Valley| San Gabriel | San Marino | Santa Clarita | Santa Fe Springs | Santa Monica | Sherman Oaks Sierra Madre | Signal Hill | South El Monte | South Gate | South Pasadena | Sunland Sun Valley Sylmar Tarzana Temple City | Torrance | Van Nuys Vernon
MAC'S Vertical home Lift PL-50 PL50 PL72 Elevator, mobility, mattress
MAC'S Vertical home Lift PL-50 PL50 PL72 Elevator
A company with not less than forty (40) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift.
The unit shall be assembled and pre-wired (less optional equipment and
necessary gates) and manufactured with adequate lifting and load capacity for
application described elsewhere in this specification.
The unit shall be easy to operate by the user or attendant, and shall be capable
of functioning in all weather conditions.
The unit shall have the capacity to lift up to 500lbs. to the desired lifting
height up to a maximum lift height of 50 inches (4 feet 2 inches) and 72 inches
(6 feet).
Machine tower: 14 gage cold rolled steel.
Base frame: 1 1/2" square x 3/16" wall structure steel tubing.
Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing.
Tower cap: 10 gage cold rolled steel plate
Side Guard Panels: 20 gage cold rolled steel sheet panel, 1" square x .120" -
.083" gauge steel tubing (frame).
Platform: 14 gage cold rolled steel plate with slip resistance surface.
Access ramp: 11 gage steel steel plate with slip resistance surface.
Electrical box: 16 gage galvanized steel
Switch box: Hi-impact A.B.S. Thermoplastic instrument case.
Limitations: Vertical platform lift shall operate both indoors and out, and must
be anchored on a level, 4" thick, 3500 psi reinforced concrete surface or pad.
The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gage Ul-cSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduit.
The unit shall have the following safety features for protection of users and the general public:
Upper and lower limit switches
Final limits switch
Instant Reverse Motor
Powered with 110 volt AC current, by 1/2 HP motor, 6.4 Amp
Grounded electrical system
Heavy duty worm drive gear box with heavy duty #50 lifting chain
Automatic access ramp
36" solid sides on non-enter and exit sides of platform
Non-Skid platform and access ramp surface
Key-lock control
Emergency stop switch on main platform control
Platform safety pan to stop decent of platform if obstruction is encountered
3" locking top and bottom landing gates provided with mechanical G.A.L. interlock
Switching - Control system 24 VAC low voltage current
The contractor shall do all work and supply all materials necessary for the complete installation. It is the intent of this specification to outline boradly the equipment required but not to cover the details of design and construction. Maintenance - MAC'S Vertical Home Lift PL-50 - PL-72
|
